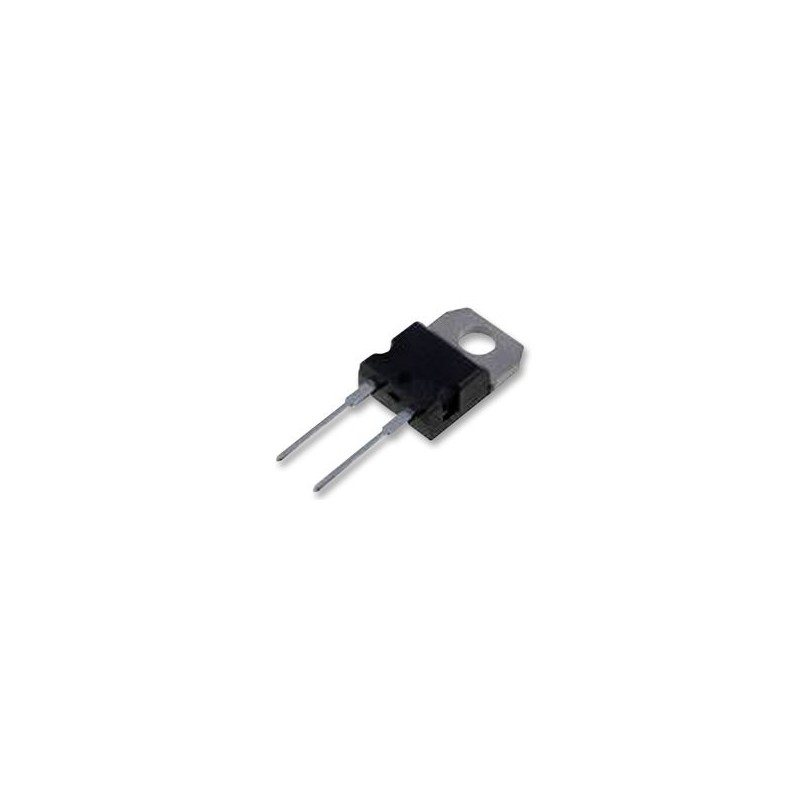

STTH1212D ULTRAFAST DIODE, 12A, 1200V

€6.70
Tax included

Standard Recovery Diode, 1.2 kV, 12 A, Single, 590 mV, 50 ns, 100 A

Quantity
In Stock

The STTH1212D is an ultrafast Soft Recovery Diode with high reverse voltage capability. The high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy-duty applications that demand long term reliability. The improved performance in low leakage current and therefore thermal runaway guard band, is an immediate competitive advantage for this device.

    Very low conduction and switching losses
    High frequency and high pulsed current operation
    High junction temperature
    30A RMS forward current
    1.6°C/W Junction to case thermal resistance

Cresta de Tensión Inversa Recurrente: 1.2kV Corriente Directa Promedio: 12A Configuración de Diodo: Único Tensión Directa Máxima: 590mV Tiempo de Recuperación Inversa: 50ns Sobrecorriente Directa: 100A Temperatura de funcionamiento Máx.: 175°C Encapsulado del Diodo: TO-220AC Número de Pines: 2Pines - Gama de Producto: STTH1

1295235
