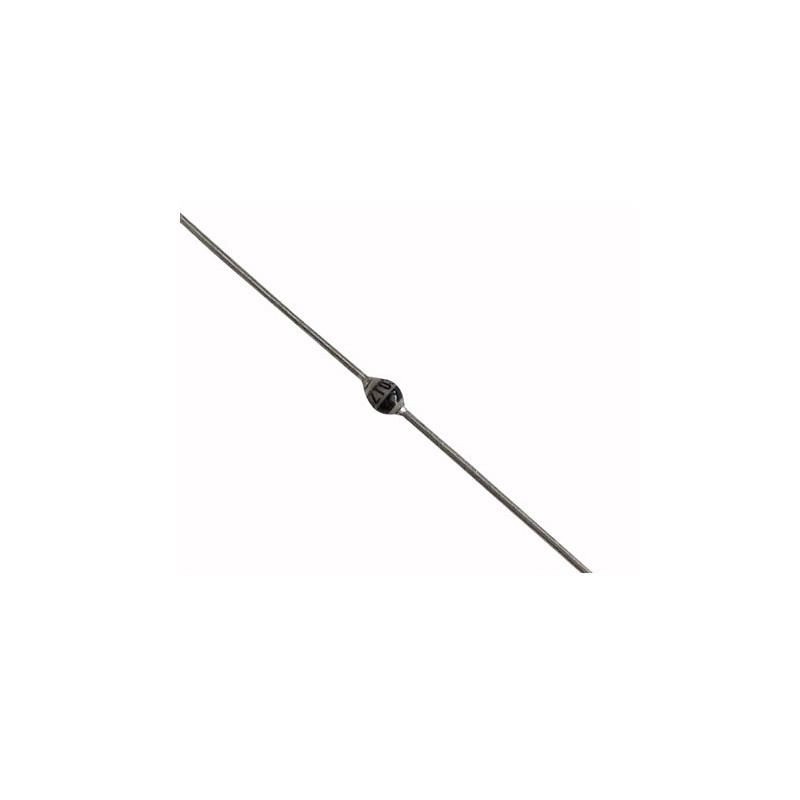

BYV27-200-TR FAST DIODE 2A, 200V
€1.19
Tax included
Ultra Fast Diode, 200V, 2A, Single, 1.07V, 25ns, 50A
The BYV27-200-TR is an ultrafast Avalanche Sinterglass Rectifier Diode with plated axial leads terminals and colour band denotes cathode end polarity. Glass passivated junction. Solderable terminals as per MIL-STD-750, method 2026 standard.
Low forward voltage
Ultrafast recovery time
15A Repetitive peak forward current
Maximum Repetitive Reverse Voltage: 200V Diode Configuration: Single Reverse Recovery Time: 25ns Maximum Operating Temperature: 175°C Number of Pins: 2-Pin Rating: AEC-Q101 Average Forward Current: 2A Maximum Forward Voltage: 1.07V Forward Surge Current: 50A Diode Package: SOD-57 Product Class: BYV27 Substance of Very High Concern (SVHC): No SVHC (Jan 21, 2025)
1469372
