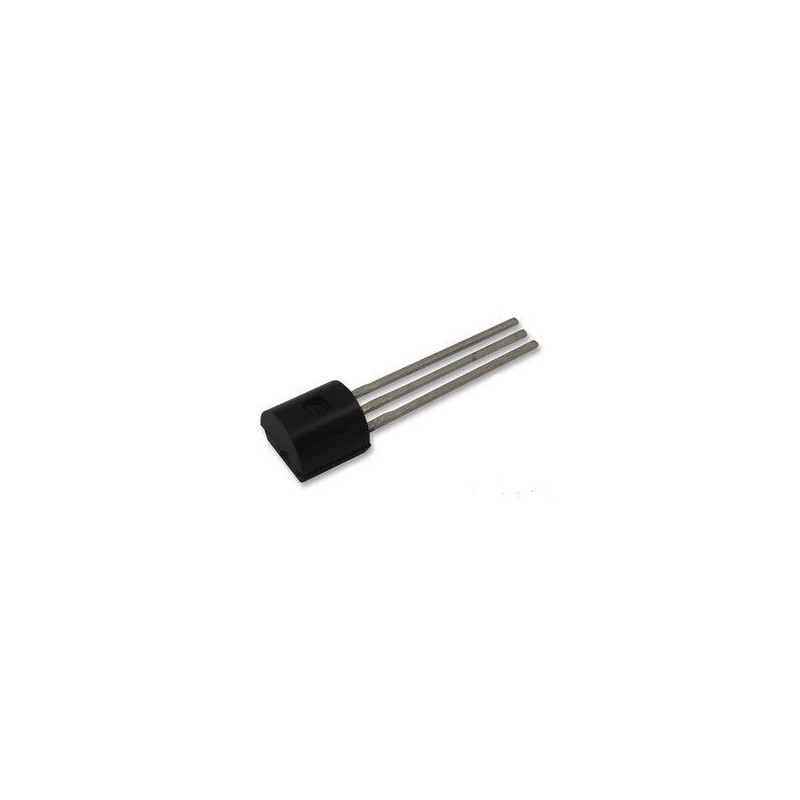

DRV5053OAQLPG Analogue Bipolar Hall Effect Sensor

€3.32
Tax included
Quantity
In Stock

100% secure payments
  • Linear output hall sensor
  • Superior temperature stability, sensitivity ±10% over-temperature
  • -11 (OA), -23 (PA), -45 (RA), -90 (VA), +23 (CA) and +45mV/mT (EA) High sensitivity options
  • Supports a wide voltage range (2.5 to 38V)
  • No external regulator required
  • Wide operating temperature range (TA = -40 to 125°C (Q))
  • 2.3mA Sink, 300µA source amplified output stage
  • 0.2 to 1.8V Output voltage (B = 0mT, OUT = 1V)
  • 35µs Fast power-on
  • Supports reverse supply Pr load dump, output short-circuit and output current limitation protection
  • Green product and no Sb/Br
2455497
