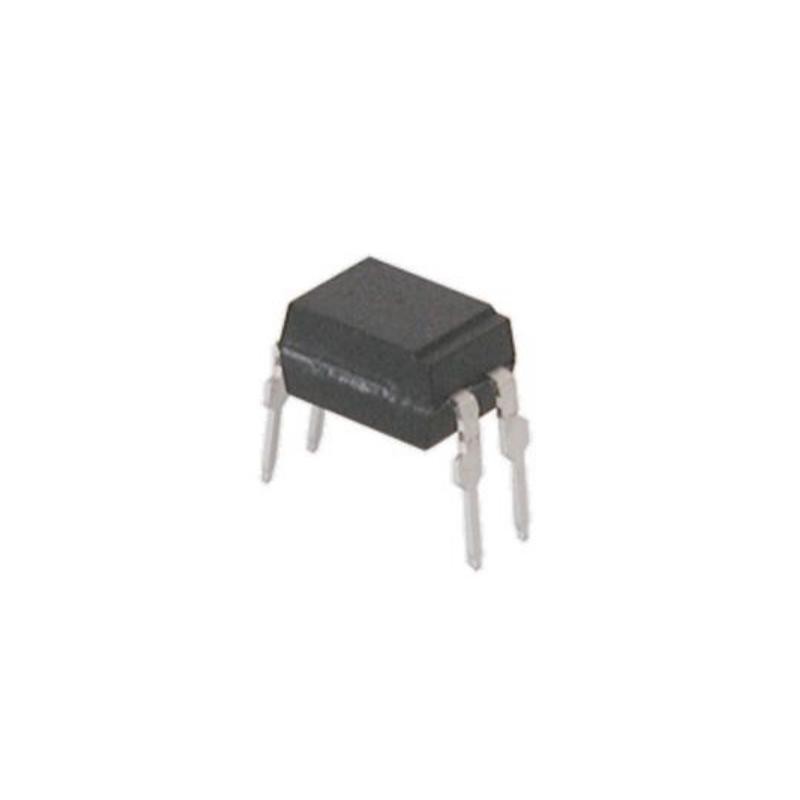

SFH610A-1 OPTOCOUPLER, TRANSISTER O / P

€2.04
Tax included

Optocoupler, Transister Output, 1 Channel, DIP, 4 Pins, 60 mA, 5.3 kV, 40%

Quantity
In Stock

100% secure payments
The SFH610A-1 is a 1-channel 4-pin Phototransistor Output Optocoupler features a high current transfer ratio, low coupling capacitance and high isolation voltage. This coupler has a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector. The coupling device is designed for signal transmission between two electrically separated circuits. The coupler is end-stackable with 2.54mm spacing. Creepage and clearance distances of >8mm. This version complies with IEC 60950 (DIN VDE 0805) for reinforced insulation up to an operation voltage of 400VRMS or DC.
  • High reliability
  • Good CTR linearity depending on forward current
  • Low saturation voltage
  • Fast switching time
  • Low CTR degradation
  • Temperature stable
  • Low coupling capacitance
  • High common-mode interference immunity
  • 70V High collector emitter voltage
  • 6V Reverse voltage
  • 60mA DC forward current
  • 200mA Saturated current
