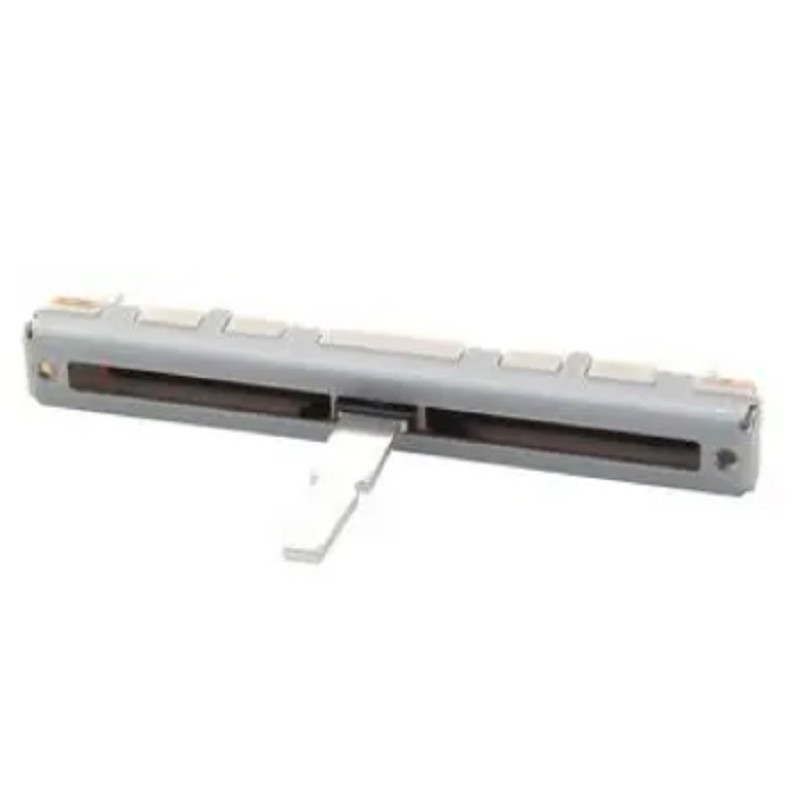

RS4511150K POTENTIOMETER, SLIDE, 50K
€11.86
Tax included
Slide Potentiometer, Standard, 50 kohm, ±20%, 125 mW, Linear, Through Hole
The Alps Super Slide RSxx1 series consists of standard slide potentiometers. These potentiometers are used in audio and home applications. Single or dual-unit resistive element Vertical lever Travel length ranges from 15 mm to 60 mm Lever length ranges from 5 mm to 20 mm Total resistances of 10 kOhm, 20 kOhm, and 50 kOhm Total resistance tolerance of ±20% Self-soaking solderable Available in 15 A, 1 B, and 3 B resistance variations.
Slide Potentiometer Type: Standard Resistance Tolerance: 20% Variation Type: Linear Stroke Length: 45mm Product Range: RS451 Series Product Width: 8mm Substance of Very High Concern (SVHC): No SVHC (Jan 17, 2023) Track Resistance: 50kohm Rated Power: 125mW Potentiometer Mounting: Through Hole Lever Length: 20mm Potentiometer Terminals: PC Pin Product Length: 60mm Product Height: 7mm
1191730
