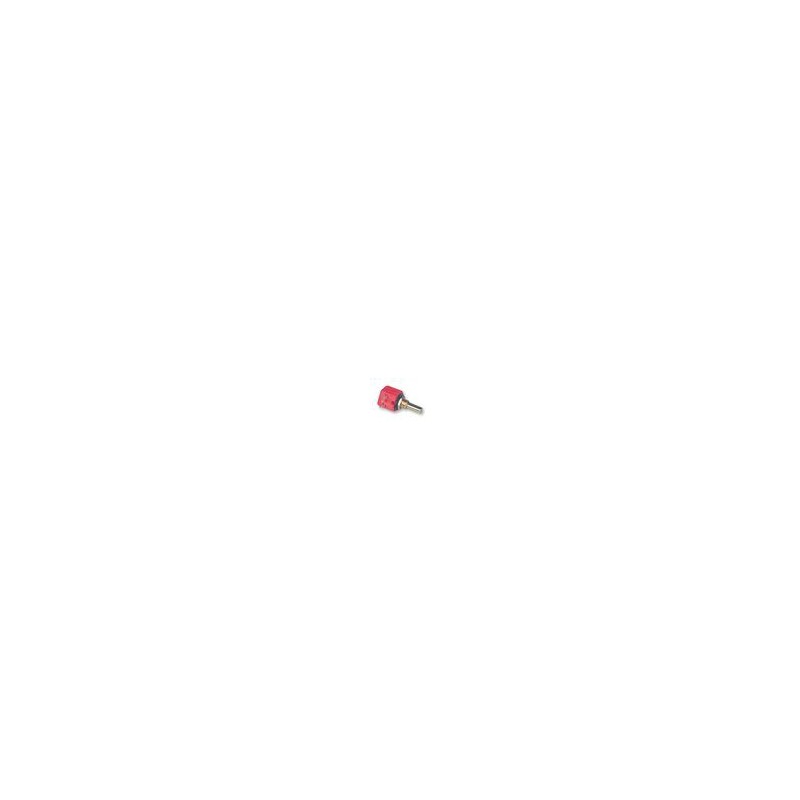

POTENCIOMETRO 25K ABW1 LINEAL
€19.84
Tax included
- POTENCIÓMETRO, 25K
- Track Resistance: 25kohm
- Track Taper: Lineal
- N.º of Turns: 1
- Shaft Diameter: 6.35mm
- Shaft Length - Metric: 25.4mm
- Resistance Tolerance: ± 10%
- Tensión nominal: 300 V
- Potencia nominal: 1W
- Potentiometer Mounting: Panel
- N.º of Gangs: 1
- Tipo de ajuste: Eje
- SVHC: No SVHC (20-Jun-2013)
- Body Diameter: 23mm
- Electrical Angular Rotation Tolerance +: 5°
- Electrical Angular Rotation Tolerance -: 5°
- External Length / Height: 17.45mm
- Full Power Rating Temperature: 40°C
- Resistencia de aislamiento: 1000Mohm
- Isolation Voltage: 1000V
- Mechanical Angular Rotation Tolerance +: 5°
- Mechanical Angular Rotation Tolerance -: 5°
- Tipo de montaje: Panel
- Operating Temperature Max: 90°C
- Operating Temperature Min: -40°C
- Operating Temperature Range: -40 °C a +90 °C
- Resistencia: 25kohm
- Resistor Element Material: Bobinada
- Rotation Electrical Angle: 265°
- Rotation Mechanical Angle: 285°
- Serie: ABW1
- Coeficiente de temperatura: ± 20ppm/°C
- Terminal Resistance: 2.5ohm
- Tipo de terminación: Soldadura
- Tolerance +: 10%
1219025
