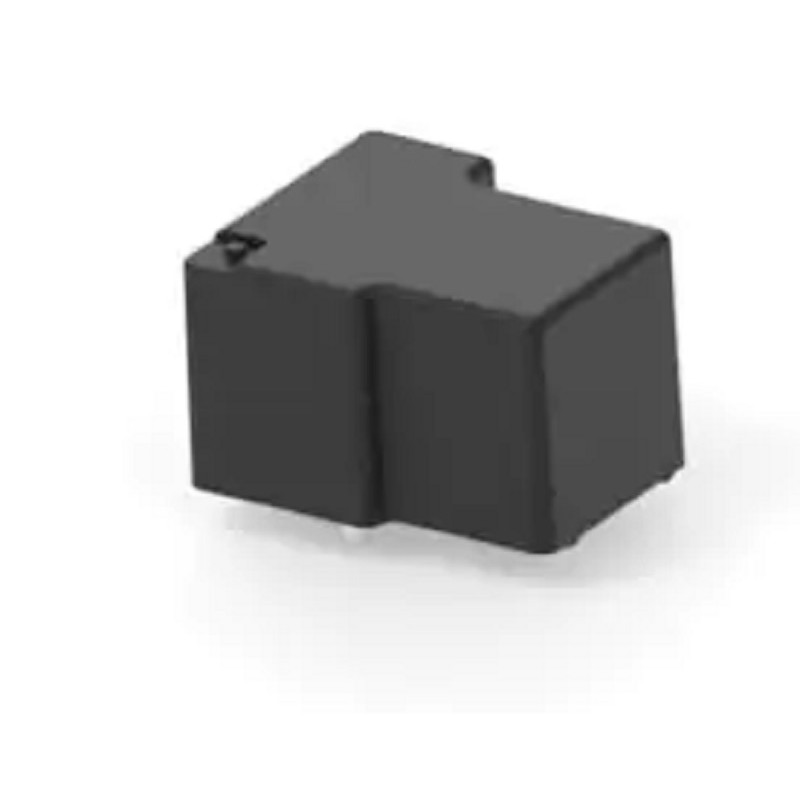

T9AS1D12-110 RELAY

Mounting Style: PCB Mount Product: Power Relays Type: Standard Contact Termination: Solder Pin Relay Mechanism and Number of Contacts: 1 Form A (SPST-NO) Maximum Contact Current: 30 A Coil Type: Non-Latching Coil Voltage: 110 VDC Coil Resistance: 12.1 kOhms Switching Voltage: 277 VAC Contact Material: Silver Cadmium Oxide (AgCdO) Series: T9A Length: 32.5 mm Width: 27.4 mm Height: 27.9 mm Brand: TE Connectivity / P&B Power Consumption: 1 W Product Type: Industrial Relays Subcategory: Relays Unit Weight: 31.118 g
