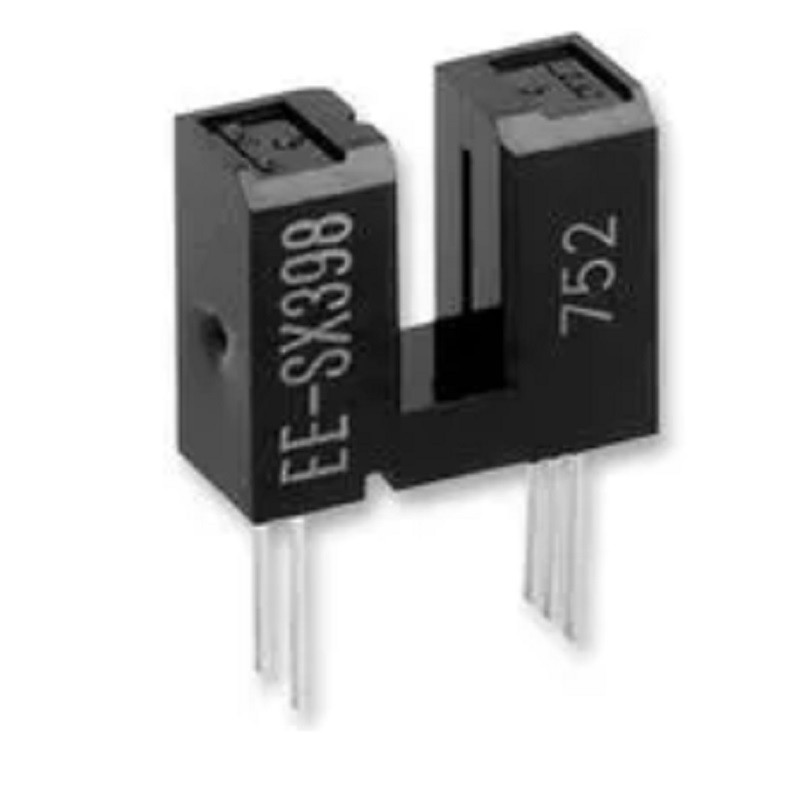

EE-SX398 PHOTO SWITCH, TRANSMISSIVE, 3MM
€4.26
Tax included
PHOTO SWITCH, TRANSMISSIVE, 3MM
The EE-SX398 series transmissive Photomicrosensor incorporates an IC chip with a built-in detector element and amplifier.
Incorporates a detector element with a built-in temperature compensation circuit
Directly connects with C-MOS and TTL
High resolution
0.5mm wide Aperture
Dark ON model
1kΩ Minimum 10kΩ typical output load
Detection Method: Transmissive Slot Width: 3mm Opening Width: 0.5mm Sensor Housing/Package: Module Max Collector-Emitter Voltage: 5V Max. IC Collector Current: 20mA Sensor Output Type: Photo-Optical IC Sensor Mounting: Through Hole Max. Operating Temperature: 75°C Slot Width / Sensing Distance: 3mm Min. Supply Voltage: 4.5VDC Max. Supply Voltage: 16VSC Forward Current (If): 50mA Reverse Voltage (Vr): 4V Forward Voltage: 1.2V IP Rating: IP50 Min. Operating Temperature: -40°C Product Range: EE series Substance of Extremely Concern (SVHC): No SVHC (Jan 15, 2019)
1348961
