I136 DELAY TIMER

€28.98
Tax included

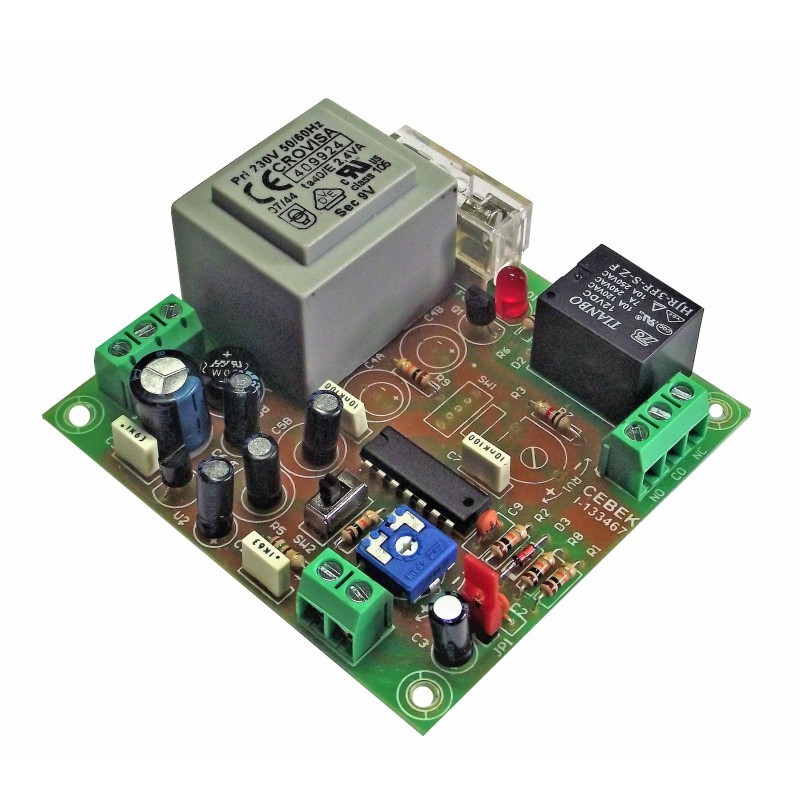

I-136 Timer with delay and subsequent permanent connection of the relay output.

Quantity
In Stock

100% secure payments
This new and updated timer features a dual time scale, making it easy to set the timer. for shorter times, and one for longer times. Timer with delay and subsequent permanent connection of the relay output. When activated, they will start the rest timing keeping the output disconnected, after which it will be activated until the circuit power supply is disconnected. Time adjustment according to model. They incorporate signaling led, activation by button or voltage.
Reference : I-136 Power supply: 230 V. AC. Average consumption: 2.4 VA. Time setting scale A : 0.1 to 24 seconds Time setting scale B : 1 second to 4 minutes. Activation : Push button or voltage Output type : Relay - NO / NC Maximum output load: 7A (2A for inductive loads) Led indicator of operation: Yes. Measurements: 72 x 76 x 28 mm. Weight: 145 gr.

I136
