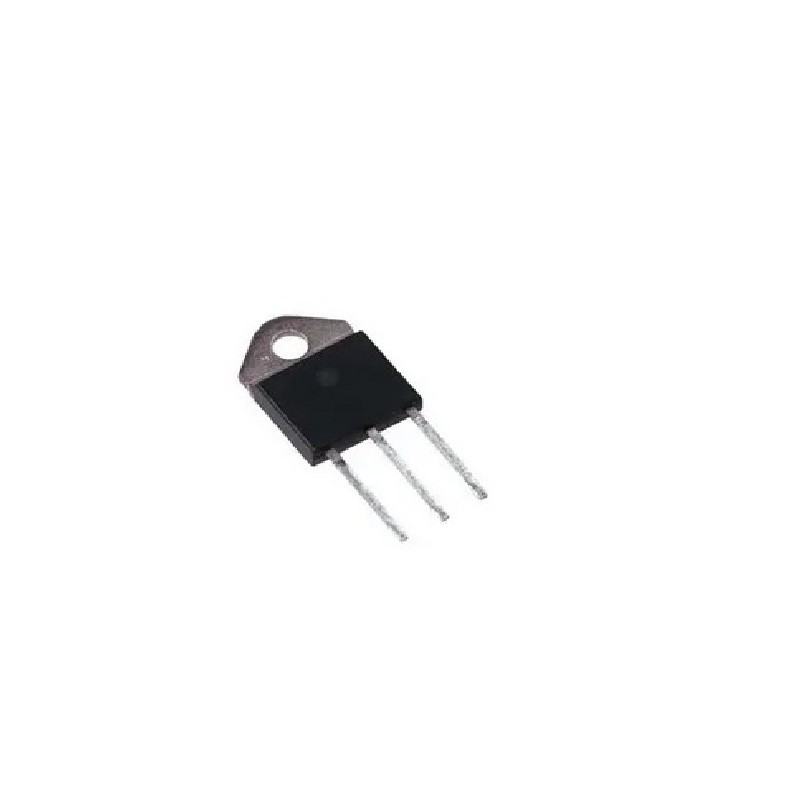

BTW68-1200RG THYRISTOR, 19A, 1200V, TO-218
The BTW68-1200RG is a 3-pin Insulated SCR for applications where power handling and power dissipation are critical.
The BTW68 series SCR's internal ceramic pad provides high voltage insulation and offers superior performance in surge current handling capabilities.
Gate Trigger Current Max. Igt: 50mA Average It Current: 19A IT Conductive State Current (rms): 30A Thyristor Package: TO-218 Number of Pins: 3Pines Peak Transient Current No Rep Itsm 50Hz: 400A Holding Current Ih Max .: 75mA Gate Trigger Current Max. Vgt: 1.5V Max Operating Temperature: 125 ° C
