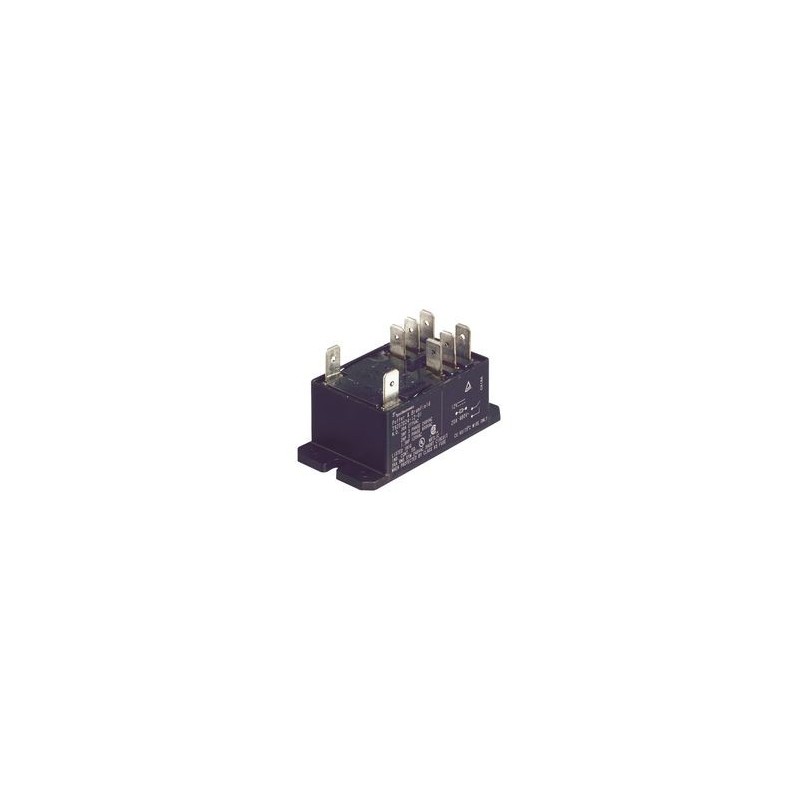

RELAY T92S7D12-110 110VDC, 30A, DPST-NO

RELAY, DPST-NO, 110 V DC, 30A Product Range: TE - T92 Series Coil Voltage: 110V DC Contact Current: 30A Contact Voltage VAC: 277V Contact Configuration: DPST-NA Coil Resistance: 7.255kohm Relay Mounting: Through Hole Coil Type: DC Coil Voltage VDC Nom: 110V Contact Current Max: 30A Contact Voltage AC Nom: 277V External Depth: 52.32mm External Height: 30.73mm External Width: 34.54mm Nom Operating Power: 1.7W Relay Type: Power
