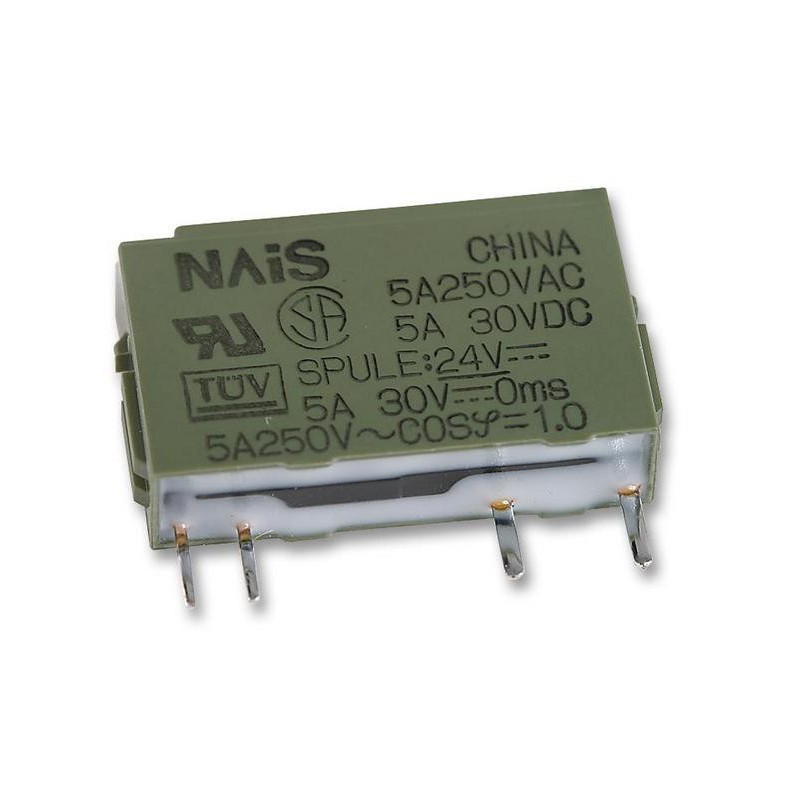

RELAY PA1A-24V, 30VDC, 250VAC, 3A, SPST
€11.91
Tax included
-
The PA1A-24V is a slim Power Relay with 1-form-A gold-clad silver alloy contact. This PA-series power relay features wide switching capacity, through hole mounting and solder relay terminal with non-latching coil.
-
- 1000MR at 500VDC Initial insulation resistance
- 1000Vrms for 1minute Initial breakdown voltage between open contacts
- -40 to 70°C Ambient temperature range
- 5 to 85% RH Humidity
- Coil, Resistance: 3.2kohm
Coil Type: Non-Interlocked
Coil voltage: 24VDC
Contact, Configuration: SPST
Contact Current: 3A
Contact, Material: Silver-Nickel
VAC Contact Voltage: 250V
VDC Contact Voltage: 30V
Product Range: PA Series
Relay, Mounting: Through Hole
Relay, Terminals: Solder
Relay, Type: Power
910375
